OER Racing Carburetor 45mm,47mm,50mm [304536NA*]

OER Racing Carburetor 45mm,47mm,50mm [304536NA*]

Price: JPY62,920 - JPY120,000(tax included)

Prices vary according to options.

Size(diameter) Select
45mm(choke less) /right inlet
45mm(choke less) /left inlet
45mm(choke less) /dual inlet
47mm(choke less) /right inlet
47mm(choke less) /left inlet
47mm(choke less) /dual inlet
50mm(choke less) /right inlet
50mm(choke less) /left inlet
50mm(choke less) /dual inlet
45mm(choke less) Weber type /right inlet
45mm(choke less) Weber type /left inlet
45mm(choke less) Weber type /dual inlet
47mm(choke less) Weber type /right inlet
47mm(choke less) Weber type /left inlet
47mm(choke less) Weber type /dual inlet

Price: JPY62,920 - JPY120,000(tax included)

Quantity:
Contact Us
Wish List

Item description

OER Racing Carburetor

This is different!
Including inside part, the whole is made in Japan.
High Quality. Reliable performance / Proven performance.

OER Corporation was established in 1983, as SK Engineering Ltd.. Their product "SK turbo" made a hit all over the world.
They established OER Corporation in 1991.

Anyone will know "SK SPORTS KIT", "SK TURBO" even if you do not know name of "OER".
OER Corp. have developed an advanced new carbs which took in the good point of other companies.

And they have been the most influential manufacturer.
It is the manufacturer who still makes side draft carburetor.

Needless to say, they are makers having reliable technology.

Item No.
Size
Unit Price
included parts
04536NAF45mm(choke less)
JPY62,920.-
Main air jet #200, Main fuel jet #150, Pilot Jet #60, Pump Nozzle #40, Outer Venturi 36mm, Needle Valve #1.8
04738NAF47mm(choke less)
JPY67,760.-
Main air jet #200, Main fuel jet #160, Pilot Jet #60, Pump Nozzle #45, Outer Venturi 38mm, Needle Valve #2.0
05036NAF50mm(choke less)
JPY120,000.-
Main air jet #180, Main fuel jet #180, Pilot Jet #65, Pump Nozzle #45, Outer Venturi 40or43mm, Needle Valve #2.0
 04536NAF-U

45mm(choke less)

Weber type

JPY66,550.-
Main air jet #150, Air jet #200, Pilot Jet #55(original), Pump Nozzle #40, Outer Venturi 36mm, Needle Valve #1.8, Emulsion Tube original.

Genuine parts of Weber except outer venturi and pump nozzle are usable
 04738NAF-U

47mm(choke less)

Weber type

JPY71.390.-
Main air jet #160, Air jet #200, Pilot Jet #55(original), Pump Nozzle #45, Outer Venturi 36mm, Needle Valve #2.0, Emulsion Tube original.

Genuine parts of Weber except outer venturi and pump nozzle are usable

FAQ / Notes

Parts

  • Linkage parts are sold separately.

  • The air horn is included.

  • If you prefer rod type or wire type, please indicate this in the “Other comments” box when ordering.

Setting

  • Weber emulsion pilot can be installed, but the pump nozzle must be OER.

  • Inlet position: with the funnel mouth (velocity stack) facing forward, check if the fuel inlet is on the right, left, or both. Please select accordingly.

  • Set contents are shown on this page. Other parts must be ordered separately. For pre-installation, write in “Other comments.”

Shipping

  • OER products are shipped worldwide by FedEx only (EMS not available).

  • Domestic delivery in Japan is free, except Hokkaido, Kyushu, Okinawa, and remote islands.

Price

  • Prices are in Japanese Yen. Please check the latest exchange rate here.

  • Please contact us if you wish to know the shipping cost in advance.

Usually the delivery date is about 2 days,
However,
At this time, due to the production of parts, delivery may take up to one month after payment is confirmed.

Specifications

Item No. 04x36NAF,04x36NAR
Origin Japan
Size 45mm, 47mm, 50mm
Packing 2units:250x400x200mm, 3units:300x500x200mm.
Net Weight 3.0kg/unit
Gross Weight 2units:6.5kg, 3units:9.6kg
Material aluminium die cast

Other Images

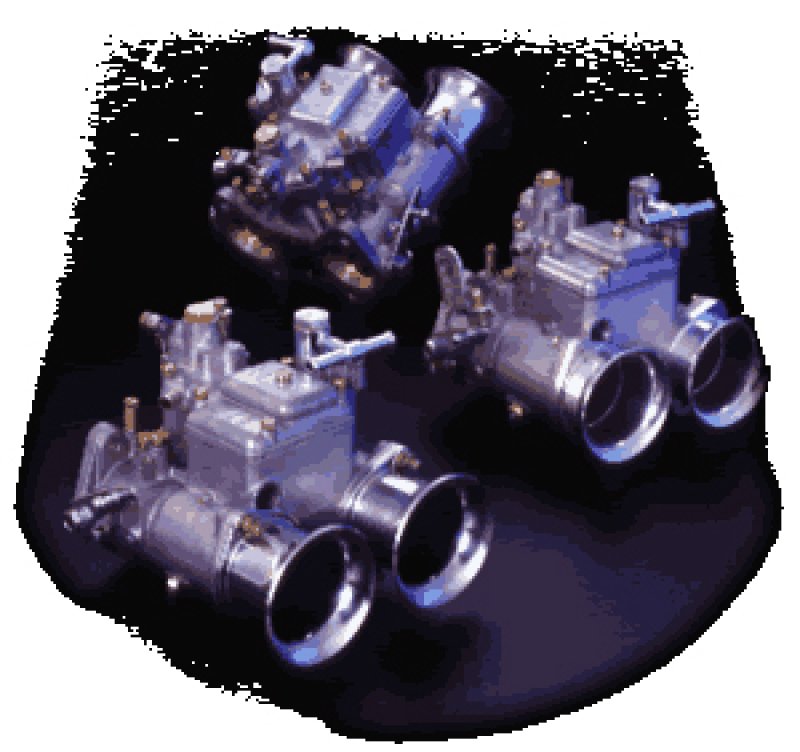

  • Photo1: OER Racing Carburetor 45mm,47mm,50mm
    OER CARBURETORS 2 KEY FEATURES

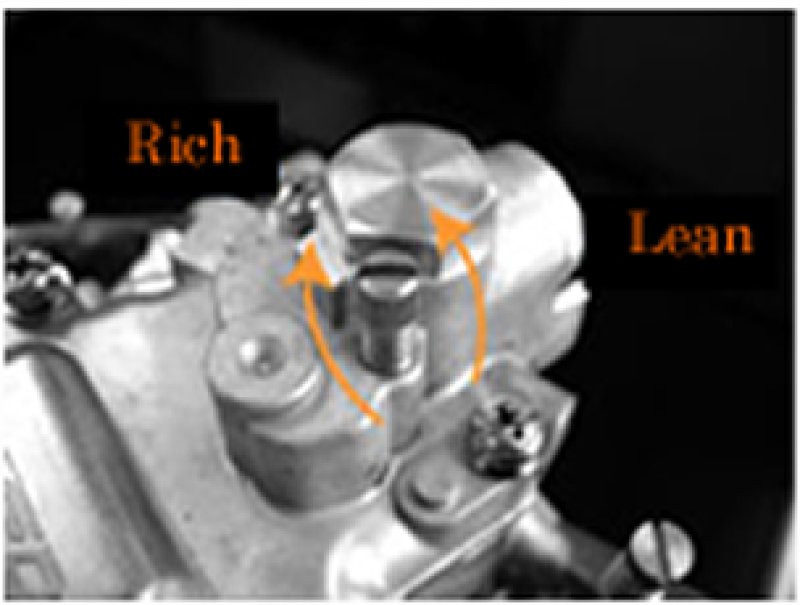

    1. External Acceleration Pump Adjusting.
    2. External Adjustment Of Float Level.


    With other Side Draft carburators, discharge adjustment of the pump which attached to an engine was very difficult. However you can increase and decrease easily just to turn this screw.
  • Photo2: OER Racing Carburetor 45mm,47mm,50mm

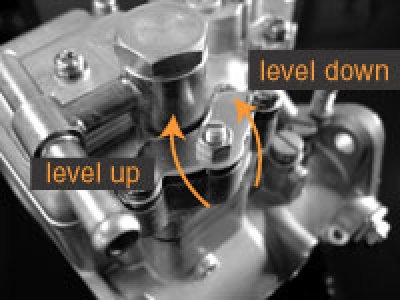

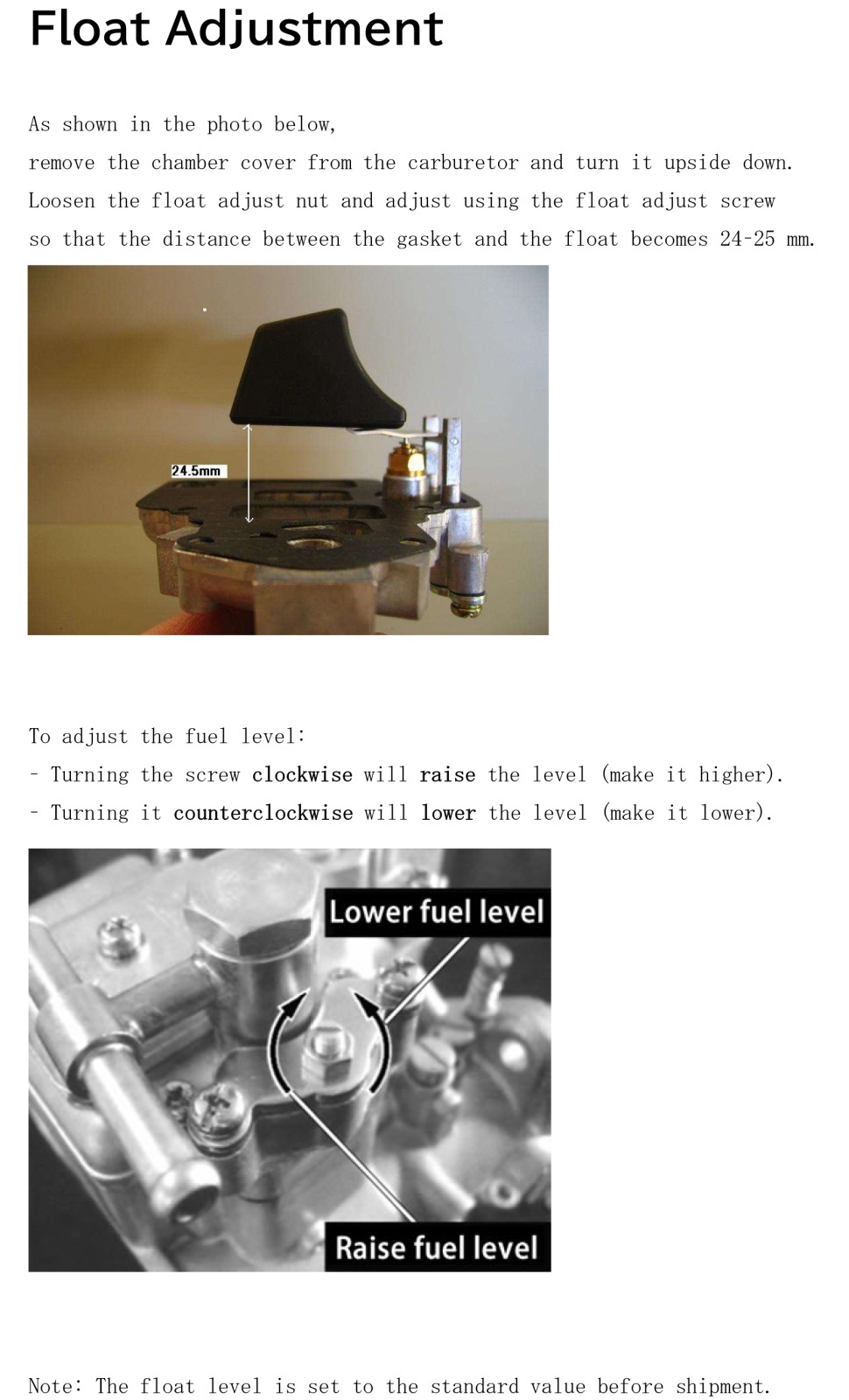

    Adjustment of a float level

    It is controlled by a float level whether an engine is brisk or out of condition. You can easily adjust it by turning this screw

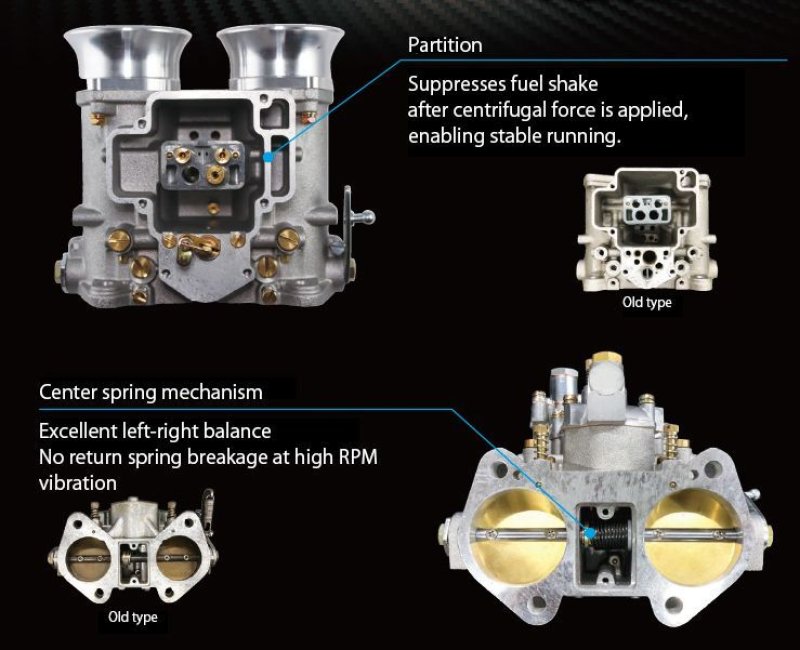

  • Photo3: OER Racing Carburetor 45mm,47mm,50mm
