Order form "OER Carburetor part list" List No.1-60

Order form "OER Carburetor part list" List No.1-60

Price: JPY80 - JPY5,810(tax included)

Prices vary according to options.

part(component) Select
1. R812-1525 Screw jet cover
2. R351-1050 Jet cover washer
3. 8820-0060 Jet cover
4. 8804-0080 Jet cover gasket
5. 8810-0110 Pump adjust screw
6. 8818-0090 Pump stopper spring
7. 8810-0050 Fuel union bolt
8. 8815-0010 Fuel filter
9. 8809-0090 Fuel union gasket
10. 8805-0060 Fuel union LH
10. 8805-0050 Fuel union RH
10. 8805-0070 Fuel union Dual
11. R812-1510 Screw jet cover
12. 8810-0190F Float adjust screw
13. R411-4005 Float adjust nut
14. 8820-0160 Float adjust plate
15. 8804-0040 Float adjust plate gasket
16. 8850-0020 Saddle
17. 8820-0150 Float-pin
18. 8818-0010 Float adjust spring
19. 8810-0060 Screw plug
20. 8818-0050 Starter valve spring
21. 8850-0090 Pump plunger
22. R771-5010 Starter terminal screw
23. 8810-0100 Cable clamp
24. R612-0004 Starter terminal circlip
25. R471-0050 Spring washer
26. 8808-0040 Spring retainer
27. 8818-0030 Spring LH
28. 8804-0010 Cold starter lever
29. 8810-0070 Nut (Screw plug)
29. 8810-0071 Nut (Chokeless plug)
30. 8802-0010 Cold start cam LH
30. 8802-0011 Cold start cam RH
31-33. 8803-0010A Cable bracket assembly
32. 8803-0020 clamp arm
33. 8803-0004 Wire blacket R
34. R812-1525 Top cover screw
35. 8820-0020 Top cover (chokeless)
36. 8809-0011 Top cover gasket
37. 8809-0060 Needle valve gasket
38. 8850-0130 Needle valve 1.8mm
39. 8850-0010 Float assembly
40. 8863-**** Pilot jet
41. 8862-**** Air jet
42. 8820-0242 Emulsion tube type S
42. 8820-0243 Emulsion tube type R
42. 8820-0244 Emulsion tube type T
43. 8861-**** Main jet
46. 8850-0040 Pump rod
47. 8808-0020 Pump plate
48. 8818-0020 Pump spring
49. 8850-0030 Pump plunger
50. 8850-0120 Pump rod stopper
51. 8818-0100 Stopper spring
52. 8810-0030 Pump weight plug
53. 8820-0100 Pump demand weight
54. 8820-0370 Pump Ball
55. 8810-0010 Pump jet plug
56. R020-1006 Pump jet O-ring
58. 8865-**** Pump jet
59. 8809-0020 Pump jet gasket
60. 8810-0020 Vacuum take off plug

Price: JPY80 - JPY5,810(tax included)

Quantity:

Item description

Are you looking for OER Carburetor parts?
You are searchable from "OER Carburetor part list".

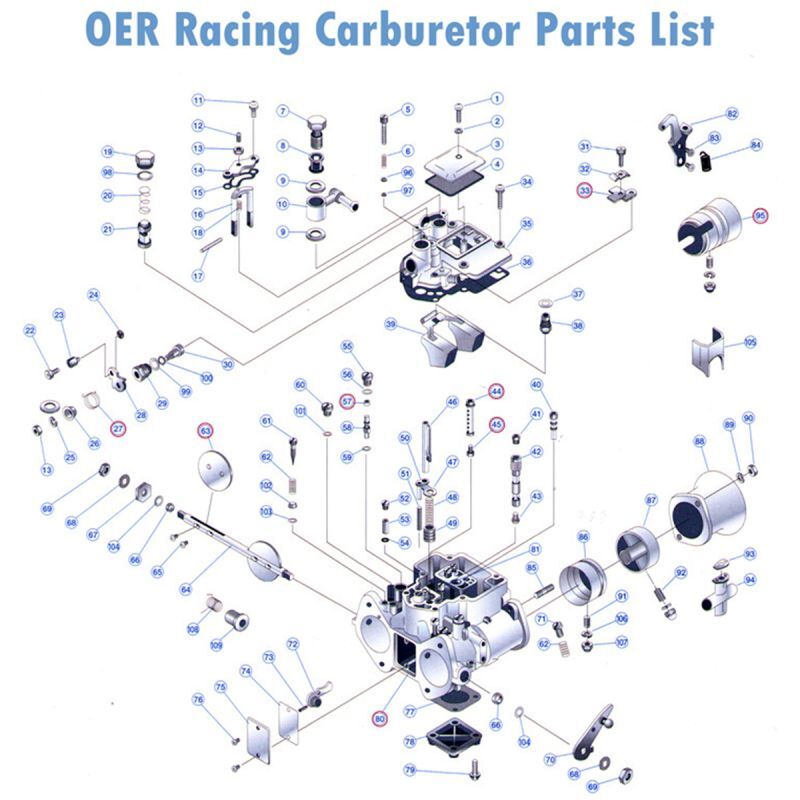

Please click the image above for larger "OER PART LIST".

List No.
Necessary
Qtty
Item No.
Item
Unit Price
Japanese
Yen
1
1
R812-1525Screw jet cover
110
2
1
R351-1050Jet cover washer
80
3
1
8820-0060Jet cover
850
4
1
8804-0080Jet cover gasket
300
5
1
8810-0110Pump adjust screw
560
6
1
8818-0090Pump stopper spring
220
7
1
8810-0050Fuel union bolt
1,210
8
1
8815-0010Fuel filter
660
9
2
8809-0090Fuel union gasket
170
10

8805-0060Fuel union LH
4,120
10

8805-0050Fuel union RH
4,120
10

8805-0070Fuel union Dual
4,480
11
2
R812-1510Screw jet cover
80
12
1
8810-0190FFloat adjust screw
220
13
1
R411-4005Float adjust nut
110
14
1
8820-0160Float adjust plate
440
15
1
8804-0040Float adjust plate gasket
300
16
1
8850-0020Saddle
850
17
1
8820-0150Float-pin
150
18
1
8818-0010Float adjust spring
170
19
1
8810-0060Screw plug
610
20
1
8818-0050Starter valve spring
190
21
1
8850-0090Pump plunger
3,880
22
1
R771-5010Starter terminal screw
310
23
1
8810-0100Cable clamp
250
24
1
R612-0004Starter terminal circlip
80
25
1
R471-0050Spring washer
80
26
1
8808-0040Spring retainer
610
27
1
8818-0030Spring LH
610
27
 8818-0031Spring RH
730
28
1
8804-0010Cold starter lever
1,820
29
1
8810-0070Nut (Screw plug)
1,340
29
1
8810-0071Nut (Chokeless plug)
1,460
30
1
8802-0010Cold start cam LH
2,420
30

8802-0011Cold start cam RH
2,420
31
1
8803-0010ACable bracket assembly
2,910
32
1
8803-0020clamp arm(inclided 31)
33
1
8803-0004Wire blacket R(included 31)
33
 8803-0003Wire bracket L
1210
34
6
R812-1525Top cover screw
110
35
1
8820-0020Top cover (chokeless)
5,810
36
1
8809-0011Top cover gasket
1,400
37
1
8809-0060Needle valve gasket
150
38
1
8850-0130Needle valve 1.8mm
4,000
39
1
8850-0010Float assembly
4,840
8863-****Pilot jet
8862-****Air jet
8820-0242Emulsion tube type S
8820-0243Emulsion tube type R
8820-0244Emulsion tube type T
8861-****Main jet
44
1
8820-0040Starter pipe
2,180
45
1
8864-00**Starter jet
970
46
1
8850-0040Pump rod
2,180
47
1
8808-0020Pump plate
220
48
1
8818-0020Pump spring
440
49
1
8850-0030Pump plunger
1,820
50
1
8850-0120Pump rod stopper
970
51
1
8818-0100Stopper spring
220
52
2
8810-0030Pump weight plug
220
53
2
8820-0100Pump demand weight
220
54
2
8820-0370Pump Ball
130
55
2
8810-0010Pump jet plug
370
56
2
R020-1006Pump jet O-ring
300
57


Pump nozzle fileter

Pump jet (Pump nozzle)
59
2
8809-0020
Pump jet gasket
90
60
2
8810-0020
Vacuum take off plug
440
List No.
Necessary
Qtty
Item No.
Item
Unit Price
Japanese
Yen
61
2
8810-0090
Idle mixture screw (Pilot Screw)
370
62
2
8818-0070
Idle screw spring
190
63
2
8812-5010
8812-4710
8812-4510

Throttle valve(50mm)
Throttle valve(47mm)
Throttle valve(45mm)

7,260
6,050
6,050
64
1
8802-4510
Throttle shaft 45mm
4,240
64
1
8802-4710
Throttle shaft 47mm
4,600
64
1
8802-5010
Throttle shaft 50mm
7,260
65
4
R731-3008
Throttle calve screw
80
66
2
8809-0070
Shaft seal
660
67
1
8808-0010
Shaft washer
200
68
2
8808-0030
Lock washer
80
69
2
8810-0140
Shaft nut
190
70
1
8850-0050(normal)
Throttle lever
1,820
70
1
8850-0050L
Throttle lever
3,630
71
1
8810-0201
Screw throttle adjust 50mm Length 15mm
310
71
1
8810-0201
Screw throttle adjust 50mm Length 19mm
310
72
1
8850-0060
Pump lever
2,420
73
1
8820-0340
Spring pin
150
74
1
8809-0030
Pump cover plate gasket
220
75
1
8812-0010
Pump cover plate
1,210
76
2
8810-0180
Screw
100
77
1
8809-0050
Bottom cover gasket
300
78
1
8820-0050
Bottom cover
1,090
79
4
R812-1520
Screw bottm cover
100
80
21

Body assembly

81
1
8867-0000
Exhaust bleed
880
82
1
8803-0040
Throttle lever bracket
1,320
82
1
8803-0040L
Throttle lever bracket L
1,820
83
2
8810-0210
Screw bracket
220
84
1
8818-0081
Throttle lever spring
370
85
4
4514-0612
Stud bolt
250
85
4
8810-0220
Screw 50mm
250
86
2
8819-4536
Outer venturi 45mm-36
4,000
86
2
8819-4738
Outer venturi 47mm-38
4,600
86
2
8819-5043
Outer venturi 50mm-43
4,840
87
2
8820-0270
Auxiliary (inner) venturi
4,240
88
2
8819-4550
Air horn 45mm-50mm
4,840
88
2
8819-4750
Air horn 47mm-50mm
4,840
88
2
8819-5035
Air horn 50mm-35mm
9,080
89
8
R471-0060
Spring wsher 40mm, 45mm
80
90
8
R414-4006
Nut 40mm, 45mm
100
91
2
8810-0160
Set screw
220
92
2
8810-0170
Set screw
220
93
2
8809-0110
Gasket venturi 50mm
150
94
2
8820-0310
Auxiliary (inner) venturi for 50mm
3,630
95


Sleeve

96
1
8808-0090
Washer pump plug
220
97
2
8809-0130
Pump adjust screw O-ring
150
98
2
8809-0170
Screw pump plug O-ring
220
99
1
8809-0160
Screw plug O-ring
220
100
1
8809-0150
Cold start cam O-ring
190
101
2
8809-0180
Screw plug O-ring
190
102
2
8808-0080W
Idle screw washer
270
103
2
8809-0140
Idle screw O-ring
190
104
2
8808-0070
Lock washer
270
105
1
8818-0120
Plate(fuel baffle plates)
old type(for SK carb)
3,030
105
1
8818-0120
Plate(fuel baffle plates)
new type
2,420
106
4
8809-0190
Gasket fiber
150
107
4
8810-0240F
Nut
200
107
4
8810-0240
Cap nut
370
108
1
8818-0130
Center return spring
1,340
109
1
8808-0080S
Center spring retainer
1,340

*List No.27, 33, 44, 45, 57, 63, 80, 95(in red character)...We are not selling that product.

*List No.96, 97, 102, 103, 106, 107(Item No.8810-0240)...Option parts for turbo

*List No.40. 8863-**** Pilot jet is sold on https://www.oer-carburetor.site/product/9

*List No.41. 8862-**** Ailot jet is sold on https://www.oer-carburetor.site/product/10

*List No.43 8861-**** Main jet is sold on https://www.oer-carburetor.site/product/11

*List No.58. 8865-**** Pump jet (Pump nozzle) is sold on https://www.oer-carburetor.site/product/8

Contact us if you have question.

We sell the OER article any place other than Japan insubstitution of OER Corpration.
In other words we are their specialty export agencies.
Therefore, only we can sell pure OER product directly.

*We can sell OER products all over the world except Japan.
*Shipping Charge is not included in a price.
*Please contact us before putting articles in cart to know shipping charge.
*Price is Japanese Yen.
*We despatch commodity within 3 working days after receipt of your payment.

Click here to open OER website

Please refer exchange rate in following website. http://www.oanda.com/convert/classic

Specifications

Net Weight 35.200/pc.
