Order form "OER Carburetor part list" List No.61-109

Order form "OER Carburetor part list" List No.61-109

Price: JPY0 - JPY9,080(tax included)

Prices vary according to options.

part(component) Select
61. 8810-0090 Idle mixture screw (Pilot Screw)
62. 8818-0070 Idle screw spring
63. 8812-4510 Throttle valve(45mm)
63. 8812-4710 Throttle valve(47mm)
63. 8812-5010 Throttle valve(50mm)
64. 8802-4510 Throttle shaft45mm
64. 8802-4710 Throttle shaft47mm
64. 8802-5010 Throttle shaft50mm
65. R731-3008 Throttle calve screw
66. 8809-0070 Shaft seal
67. 8808-0010 Shaft washer
68. 8808-0030 Lock washer
69. 8810-0140 Shaft nut
70. 8850-0050 Throttle lever(normal)
70. 8850-0050L Throttle lever
71. 8810-0201 Screw throttle adjust 50mm Length 15mm
71. 8810-0201 Screw throttle adjust 50mm Length 19mm
72. 8850-0060 Pump lever
73. 8820-0340 Spring pin
74. 8809-0030 Pump cover plate gasket
75. 8812-0010 Pump cover plate
76. 8810-0180 Screw
77. 8809-0050 Bottom cover gasket
78. 8820-0050 Bottom cover
79. R812-1520 Screw bottm cover
81. 8867-0000 Exhaust bleed
82. 8803-0040 Throttle lever bracket
82. 8803-0040L Throttle lever bracket L
83. 8810-0210 Screw bracket
84. 8818-0081 Throttle lever spring
85. 4514-0612 Stud bolt
85. 8810-0220 Screw 50mm
86. 8819-4536 Main (outer)venturi 45mm-36
86. 8819-4738 Main (outer)venturi 47mm-38
86. 8819-5043 Main (outer)venturi 50mm-43
87. 8820-0270 Auxiliary (inner) venturi
88. 8819-4550 Air horn 45mm-50mm
88. 8819-4750 Air horn 47mm-50mm
88. 8819-5035 Air horn 50mm-35mm
89. R471-0060 Spring wsher 40mm,45mm
90. R414-4006 Nut 40mm,45mm
91. 8810-0160 Set screw
92. 8810-0170 Set screw
93. 8809-0110 Gasket venturi 50mm
94. 8820-0310 Aux venturi 50mm
96. 8808-0090 Washer pump plug
97. 8809-0130 Pump adjust screw O-ring
98. 8809-0170 Screw pump plug O-ring
99. 8809-0160 Screw plug O-ring
100. 8809-0150 Cold start cam O-ring
101. 8809-0180 Screw plug O-ring
102. 8808-0080W Idle screw washer
103. 8809-0140 Idle screw O-ring
104. 8808-0070 Lock washer
105. 8818-0120 Plate(fuel baffle plates)old type (for SK carb.)
105. 8818-0120 Plate(fuel baffle plates)
106. 8809-0190 Gasket fiber
107. 8810-0240F Nut
107. 8810-0240 Cap nut
108. 8818-0130 Center return spring
109. 8808-0080S Center spring retainer
999. other

Price: JPY0 - JPY9,080(tax included)

Quantity:

Item description

Are you looking for OER Carburetor parts?
You are searchable from "OER Carburetor part list".

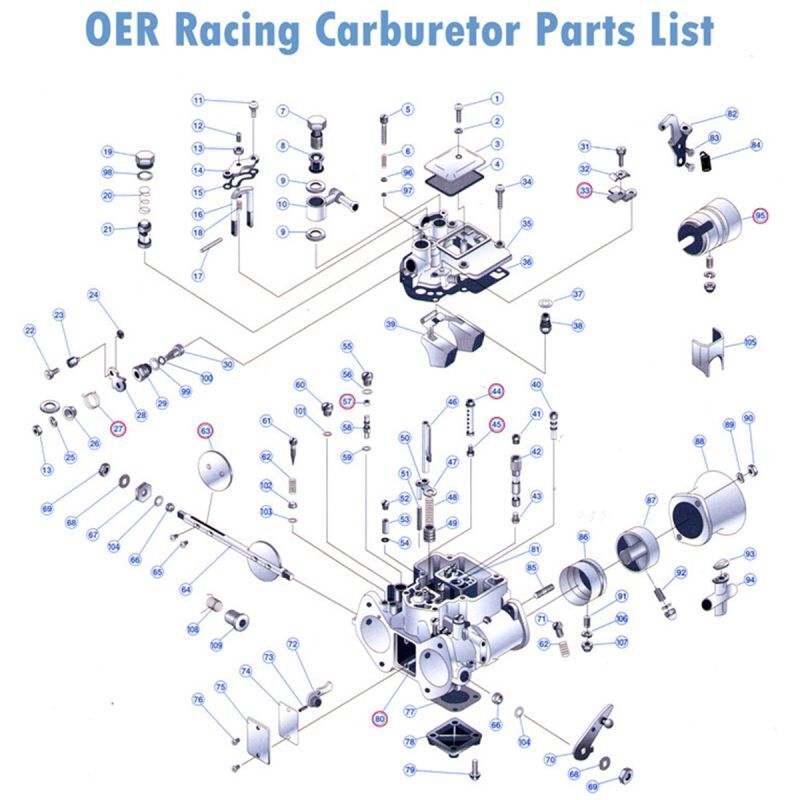

Please click the image above for larger "OER PART LIST".

List No.
Necessary
Qtty
Item No.
Item
Unit Price
Japanese
Yen
1
1
R812-1525Screw jet cover
110
2
1
R351-1050Jet cover washer
80
3
1
8820-0060Jet cover
850
4
1
8804-0080Jet cover gasket
300
5
1
8810-0110Pump adjust screw
560
6
1
8818-0090Pump stopper spring
220
7
1
8810-0050Fuel union bolt
1,210
8
1
8815-0010Fuel filter
660
9
2
8809-0090Fuel union gasket
170
10

8805-0060Fuel union LH
4,120
10

8805-0050Fuel union RH
4,120
10

8805-0070Fuel union Dual
4,480
11
2
R812-1510Screw jet cover
80
12
1
8810-0190FFloat adjust screw
220
13
1
R411-4005Float adjust nut
110
14
1
8820-0160Float adjust plate
440
15
1
8804-0040Float adjust plate gasket
300
16
1
8850-0020Saddle
850
17
1
8820-0150Float-pin
150
18
1
8818-0010Float adjust spring
170
19
1
8810-0060Screw plug
610
20
1
8818-0050Starter valve spring
190
21
1
8850-0090Pump plunger
3,880
22
1
R771-5010Starter terminal screw
310
23
1
8810-0100Cable clamp
250
24
1
R612-0004Starter terminal circlip
80
25
1
R471-0050Spring washer
80
26
1
8808-0040Spring retainer
610
27
1
8818-0030Spring LH
610
27
 8818-0031Spring RH
730
28
1
8804-0010Cold starter lever
1,820
29
1
8810-0070Nut (Screw plug)
1,340
29
1
8810-0071Nut (Chokeless plug)
1,460
30
1
8802-0010Cold start cam LH
2,420
30

8802-0011Cold start cam RH
2,420
31
1
8803-0010ACable bracket assembly
2,910
32
1
8803-0020clamp arm(inclided 31)
33
1
8803-0004Wire blacket R(included 31)
33
 8803-0003Wire bracket L
1210
34
6
R812-1525Top cover screw
110
35
1
8820-0020Top cover (chokeless)
5,810
36
1
8809-0011Top cover gasket
1,400
37
1
8809-0060Needle valve gasket
150
38
1
8850-0130Needle valve 1.8mm
4,000
39
1
8850-0010Float assembly
4,840
8863-****Pilot jet
8862-****Air jet
8820-0242Emulsion tube type S
8820-0243Emulsion tube type R
8820-0244Emulsion tube type T
8861-****Main jet
44
1
8820-0040Starter pipe
2,180
45
1
8864-00**Starter jet
970
46
1
8850-0040Pump rod
2,180
47
1
8808-0020Pump plate
220
48
1
8818-0020Pump spring
440
49
1
8850-0030Pump plunger
1,820
50
1
8850-0120Pump rod stopper
970
51
1
8818-0100Stopper spring
220
52
2
8810-0030Pump weight plug
220
53
2
8820-0100Pump demand weight
220
54
2
8820-0370Pump Ball
130
55
2
8810-0010Pump jet plug
370
56
2
R020-1006Pump jet O-ring
300
57


Pump nozzle fileter

Pump jet (Pump nozzle)
59
2
8809-0020
Pump jet gasket
90
60
2
8810-0020
Vacuum take off plug
440
List No.
Necessary
Qtty
Item No.
Item
Unit Price
Japanese
Yen
61
2
8810-0090
Idle mixture screw (Pilot Screw)
370
62
2
8818-0070
Idle screw spring
190
63
2
8812-5010
8812-4710
8812-4510

Throttle valve(50mm)
Throttle valve(47mm)
Throttle valve(45mm)

7,260
6,050
6,050
64
1
8802-4510
Throttle shaft 45mm
4,240
64
1
8802-4710
Throttle shaft 47mm
4,600
64
1
8802-5010
Throttle shaft 50mm
7,260
65
4
R731-3008
Throttle calve screw
80
66
2
8809-0070
Shaft seal
660
67
1
8808-0010
Shaft washer
200
68
2
8808-0030
Lock washer
80
69
2
8810-0140
Shaft nut
190
70
1
8850-0050(normal)
Throttle lever
1,820
70
1
8850-0050L
Throttle lever
3,630
71
1
8810-0201
Screw throttle adjust 50mm Length 15mm
310
71
1
8810-0201
Screw throttle adjust 50mm Length 19mm
310
72
1
8850-0060
Pump lever
2,420
73
1
8820-0340
Spring pin
150
74
1
8809-0030
Pump cover plate gasket
220
75
1
8812-0010
Pump cover plate
1,210
76
2
8810-0180
Screw
100
77
1
8809-0050
Bottom cover gasket
300
78
1
8820-0050
Bottom cover
1,090
79
4
R812-1520
Screw bottm cover
100
80
21

Body assembly

81
1
8867-0000
Exhaust bleed
880
82
1
8803-0040
Throttle lever bracket
1,320
82
1
8803-0040L
Throttle lever bracket L
1,820
83
2
8810-0210
Screw bracket
220
84
1
8818-0081
Throttle lever spring
370
85
4
4514-0612
Stud bolt
250
85
4
8810-0220
Screw 50mm
250
86
2
8819-4536
Outer venturi 45mm-36
4,000
86
2
8819-4738
Outer venturi 47mm-38
4,600
86
2
8819-5043
Outer venturi 50mm-43
4,840
87
2
8820-0270
Auxiliary (inner) venturi
4,240
88
2
8819-4550
Air horn 45mm-50mm
4,840
88
2
8819-4750
Air horn 47mm-50mm
4,840
88
2
8819-5035
Air horn 50mm-35mm
9,080
89
8
R471-0060
Spring wsher 40mm, 45mm
80
90
8
R414-4006
Nut 40mm, 45mm
100
91
2
8810-0160
Set screw
220
92
2
8810-0170
Set screw
220
93
2
8809-0110
Gasket venturi 50mm
150
94
2
8820-0310
Auxiliary (inner) venturi for 50mm
3,630
95


Sleeve

96
1
8808-0090
Washer pump plug
220
97
2
8809-0130
Pump adjust screw O-ring
150
98
2
8809-0170
Screw pump plug O-ring
220
99
1
8809-0160
Screw plug O-ring
220
100
1
8809-0150
Cold start cam O-ring
190
101
2
8809-0180
Screw plug O-ring
190
102
2
8808-0080W
Idle screw washer
270
103
2
8809-0140
Idle screw O-ring
190
104
2
8808-0070
Lock washer
270
105
1
8818-0120
Plate(fuel baffle plates)
old type(for SK carb)
3,030
105
1
8818-0120
Plate(fuel baffle plates)
new type
2,420
106
4
8809-0190
Gasket fiber
150
107
4
8810-0240F
Nut
200
107
4
8810-0240
Cap nut
370
108
1
8818-0130
Center return spring
1,340
109
1
8808-0080S
Center spring retainer
1,340

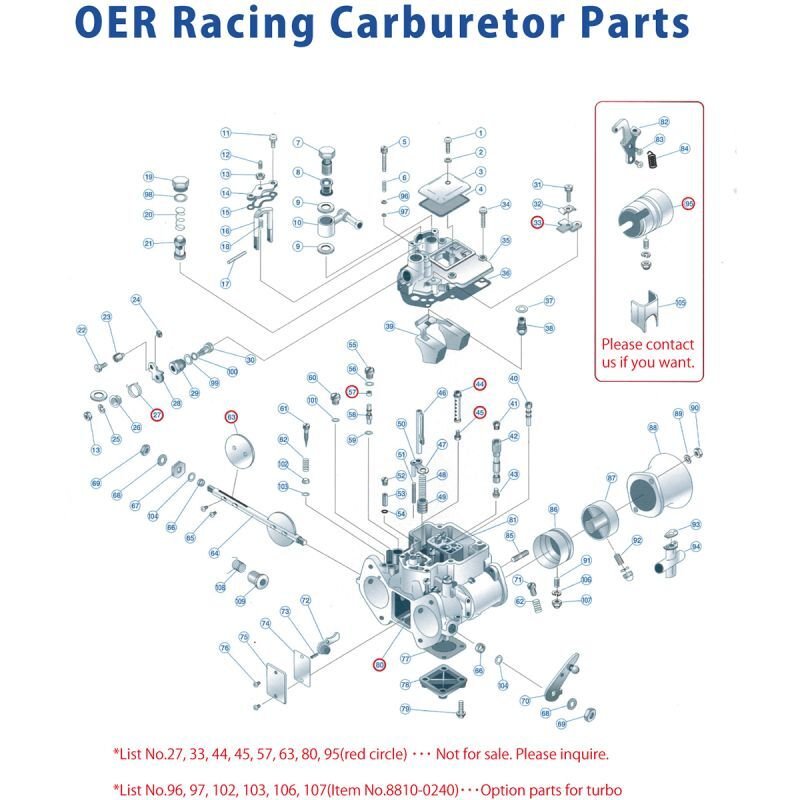

*List No.27, 33, 44, 45, 57, 63, 80, 95(in red character)...We are not selling that product.

*List No.96, 97, 102, 103, 106, 107(Item No.8810-0240)...Option parts for turbo

*List No.40. 8863-**** Pilot jet is sold on https://www.oer-carburetor.site/product/9

*List No.41. 8862-**** Ailot jet is sold on https://www.oer-carburetor.site/product/10

*List No.43 8861-**** Main jet is sold on https://www.oer-carburetor.site/product/11

*List No.58. 8865-**** Pump jet (Pump nozzle) is sold on https://www.oer-carburetor.site/product/8

Contact us if you have question.

We sell the OER article any place other than Japan insubstitution of OER Corpration.
In other words we are their specialty export agencies.
Therefore, only we can sell pure OER product directly.

*We can sell OER products all over the world except Japan.
*Shipping Charge is not included in a price.
*Please contact us before putting articles in cart to know shipping charge.
*Price is Japanese Yen.
*We despatch commodity within 3 working days after receipt of your payment.

Click here to open OER website

Please refer exchange rate in following website. http://www.oanda.com/convert/classic
