Repair Kit (Rebuilt Kit) for OER [OREP-00xx]
Price: JPY7,860(tax included)
Item description
Rebuild kits for OER Carburetor (rebuilt kit OER/SK carb.)
*SK carburetor and OER carburetor are exactly the same.
This kit (rebuild kit) is compatible with both OER and Weber type.
40mm | 7,860yen |
45mm | |
47mm | |
50mm |

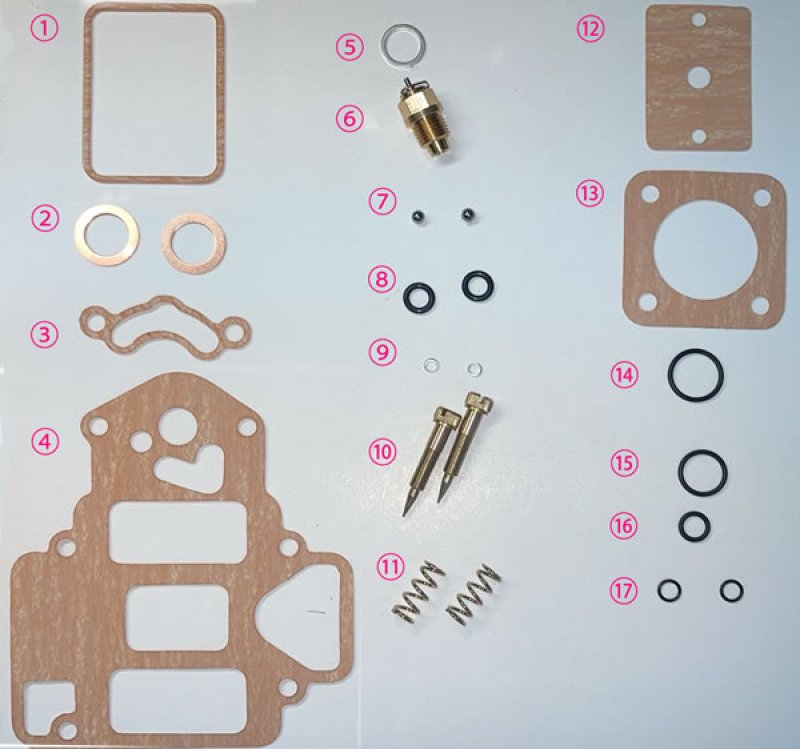

[Kit contents]
| Parts List No. | Item No. | Description | quantity | |
| (1) | Parts No.4 | 8804-0080 | Jet cover gasket | 1pc. |
| (2) | Parts No.9 | 8809-0090 | Fuel union gasket | 2pcs. |
| (3) | Parts No.15 | 8804-0040 | Float adjust plate gasket | 1pc. |
| (4) | Parts No.36 | 8809-0011 | Top cover gasket | 1pc. |
| (5) | Parts No.37 | 8809-0060 | Needle valve gasket | 1pc. |
| (6) | Parts No.38 | 8850-0130 | Needle valve 1.8mm | 1pc. |
| (7) | Parts No.54 | 8820-0370 | Pump Ball | 2pcs. |
| (8) | Parts No.56 | R020-1006 | Pump jet O-ring | 2pcs. |
| (9) | Parts No.59 | 8809-0020 | Pump jet gasket | 2pcs. |
| (10) | Parts No.61 | 8810-0090 | Idle mixture screw (Pilot Screw) | 2pcs. |
| (11) | Parts No.62 | 8818-0070 | Idle screw spring | 2pcs. |
| (12) | Parts No.74 | 8809-0030 | Pump cover plate gasket | 1pc. |
| (13) | Parts No.77 | 8809-0050 | Bottom cover gasket | 1pc. |
| (14) | Parts No.98 | 8809-0170 | Screw pump plug O-ring | 1pc. |
| (15) | Parts No.99 | 8809-0160 | Screw plug O-ring | 1pc. |
| (16) | Parts No.100 | 8809-0150 | Cold start cam O-ring | 1pc. |
*Please see part list for details.
*We can sell OER products all over the world except Japan.
*Shipping Charge is not included in a price.
*Please contact us before putting articles in cart to know shipping charge.
*Price is Japanese Yen.
*We despatch commodity within 3 working days after receipt of your payment.
Please refer exchange rate in following website.http://www.oanda.com/convert/classic
*The gross weight of one "Repaur Kot" is 300 g if order only one piece of article
EMS shipping charge http://www.post.japanpost.jp/int/charge/list/ems_all_en.html
Specifications
| Item No. | OREP-00xx |
|---|---|
| Origin | Japan |
| Size | 40mm,45mm,47mm,50mm |
| Net Weight | 60g/set |
| Gross Weight | 300g/set |
